ECLISSE Delta

Inclined baseboard with polyhedral terminals

Download
  • Pocket Doors Frames | Made in Italy
  • Products
  • Baseboards
  • ECLISSE Delta

    • Syntesis® Baseboard
    OVERVIEW




    The inclined skirting board

    A new baseboard geometry

    The new ECLISSE skirting board owes its name to its very shape, a triangle, which in the Greek alphabet stands for the letter Delta, but also represents the mathematical symbol for variation, Δ. A symbolic name, since this skirting board changes in shape and, depending on how we look at it, in the play of light and perspective.



    ECLISSE Delta - inclined baseboard - white finish
    ECLISSE Delta - front view - inclined baseboard with polyhedral terminals

    Front view

    ECLISSE Delta runs along the wall with elegance and discretion. At first glance, you barely notice its unusual facet near the door.

    Side view

    From the side, the skirting board reveals its true identity and distinctive character: a slope that gives the room three-dimensionality, strength and character.

    The terminal pieces, exclusive ECLISSE patent, take this concept further with their multifaceted shape.

    ECLISSE Delta - side view - inclined baseboard with polyhedral terminals

    Finishes

    Delta Primer coated

    PRIMER COATED

    Delta white

    WHITE

    Delta Champagne

    CHAMPAGNE

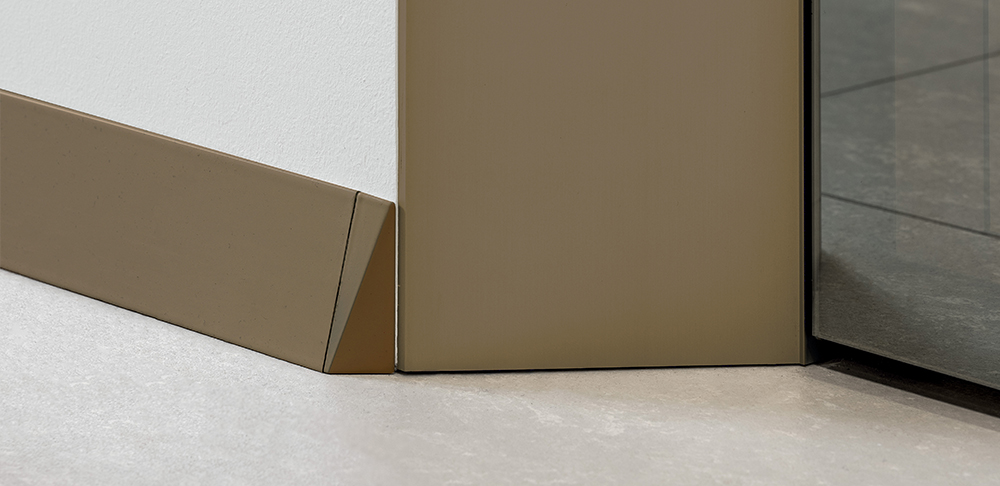

    Delta Bronze

    BRONZE

    Delta Tobacco

    TOBACCO



    The combinations suggested by ECLISSE

    ECLISSE Delta skirting board has a strong and innovative character, suitable for a modern and avant-garde style. In accordance with its personality, we recommend its application in combination with the products of the ECLISSE Syntesis® Collection and the ECLISSE 40 Collection.

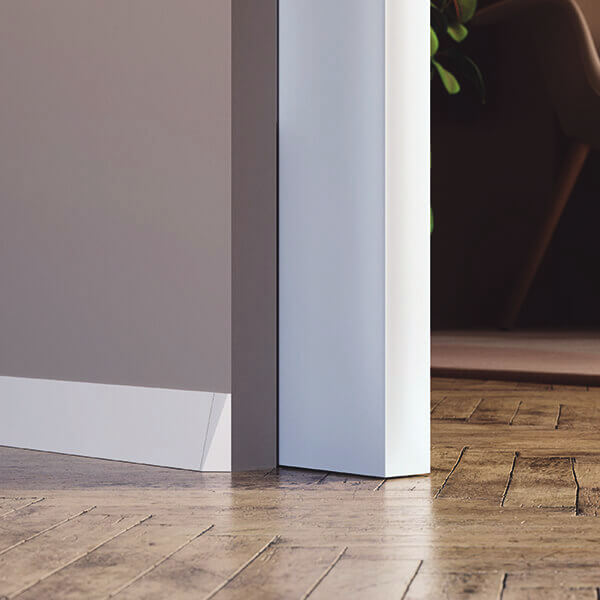

    ECLISSE Delta with flush sliding pocket door system


    ECLISSE
    Syntesis® Slide

    Combination with a flush sliding pocket door system

    The gentle inclination of the terminal pieces defuse the abrupt interruption in the wall and accompanies the eye through the passage.

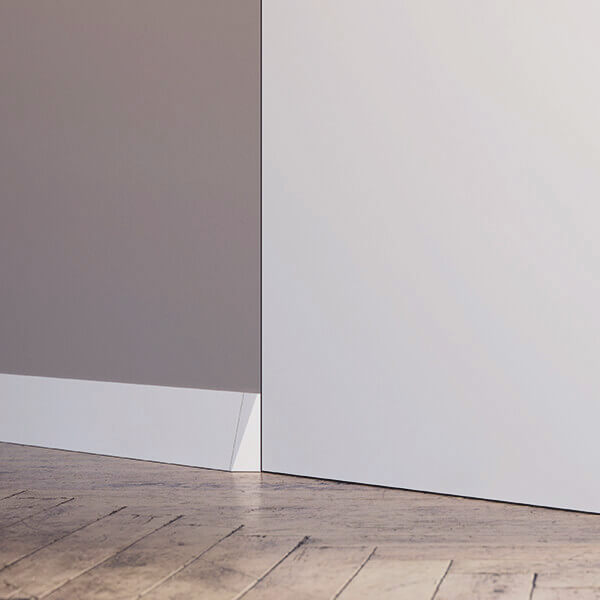

    ECLISSE Delta with flush hinged door frame


    ECLISSE
    Syntesis® Swing

    Combination with a flush hinged door

    Like a perfect defect, the play of volumes and the three-dimensionality of the skirting board interrupt the perfect flatness of the wall.

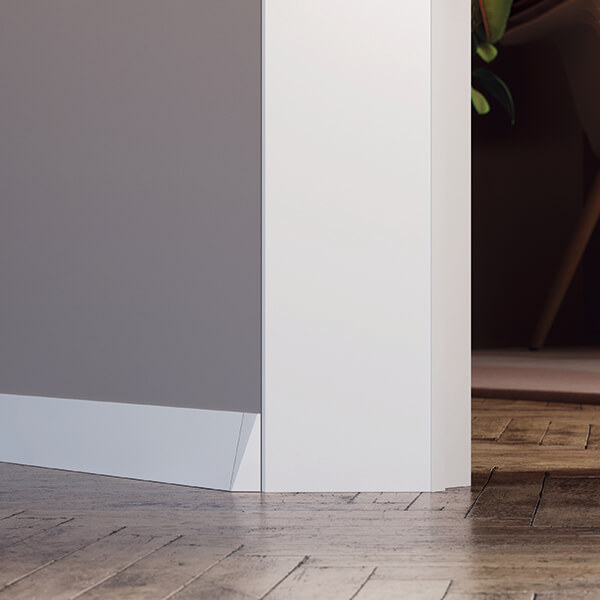

    ECLISSE Delta with ECLISSE 40 splayed hinged door frame


    ECLISSE
    40

    Combination with a splayed hinged door

    The sloping surfaces of the terminal elements recall and extend the distinctive splayed profiles of the ECLISSE 40 door frame.

    FEATURES

    Technical details

    ■  Materials and dimensions: ECLISSE Delta is made of aluminium and is available in two heights, 2” and 2-3/4“. For both heights, the tapering starts from 1/2" at floor level down to 1/8”.

    ■  Available finishes: painted white, black or with aluminium effect, plus a raw primer-coated version that can be painted to match the surrounding wall.

    ■  Easy to install: the skirting board can be applied directly to the wall, without any special precautions. Simply use silicone for fixing, no other tools are required, nor are any holes drilled in the wall.

    Applications

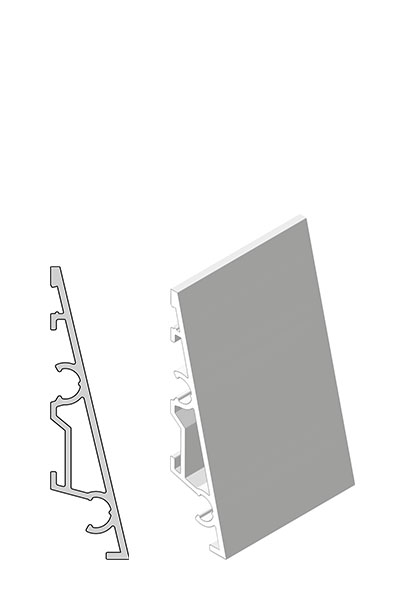

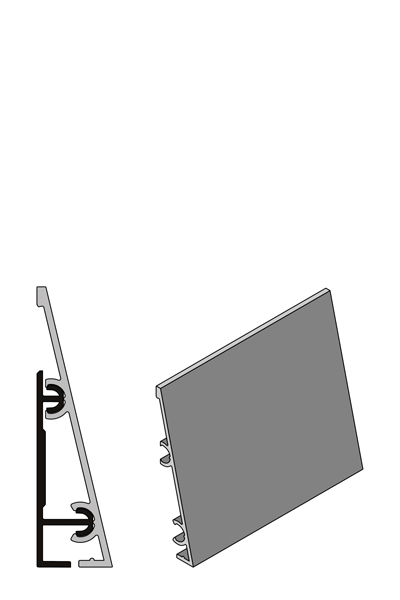

    ECLISSE Delta - 50 mm high aluminium bars

    H = 2"

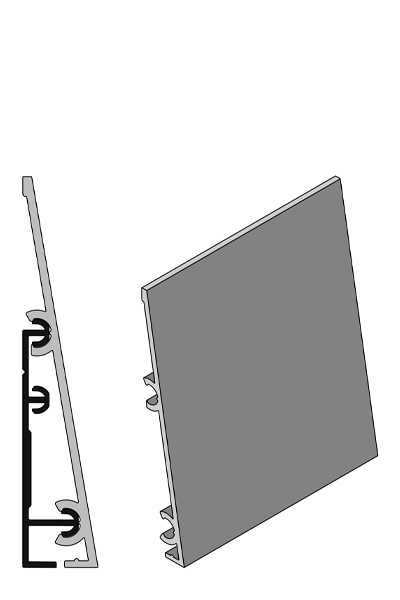

    ECLISSE Delta - 70 mm high aluminium bars

    H = 2-3/4"

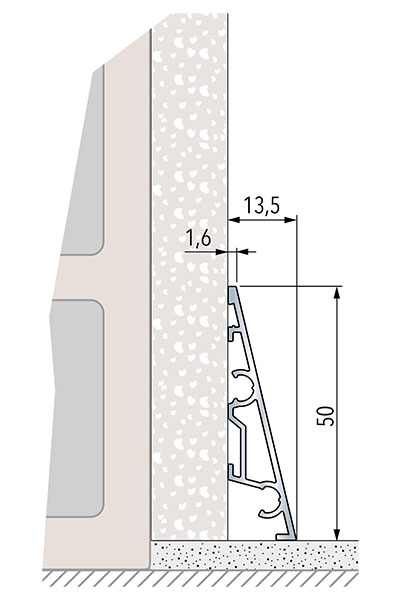

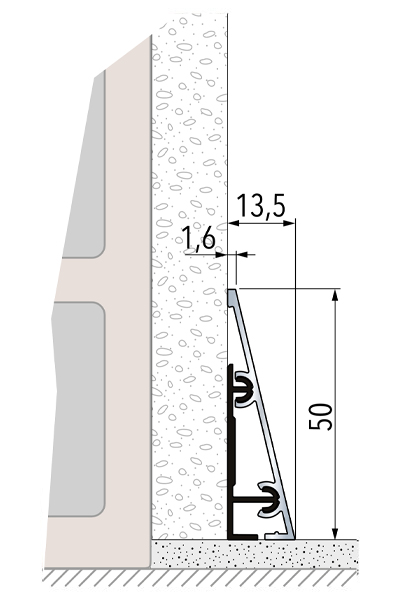

    ECLISSE Delta - solid wall

    Installation on solid wall
    (H = 50 mm)

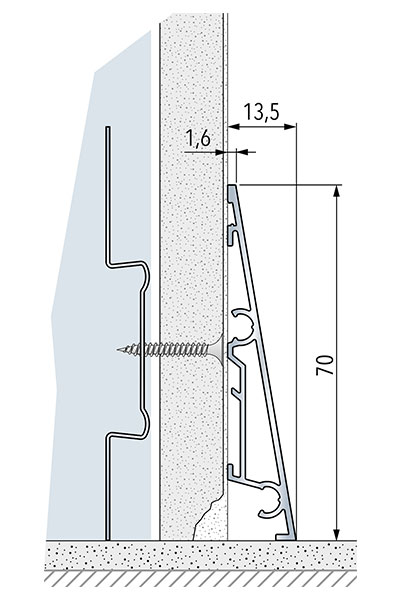

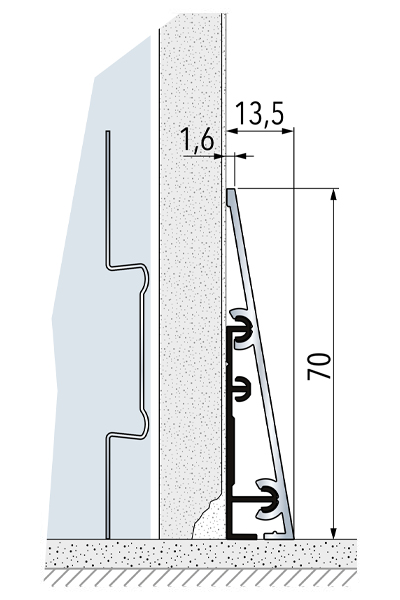

    ECLISSE Delta - stud wall

    Installation on stud wall
    (H = 70 mm)

    Terminal elements and joints

    The terminal elements are placed at the end of the aluminium bars in proximity to a door hole. Depending on your taste, you can choose between a straight end profile (the skirting board will end with a perpendicular cut, with no slope) or a slanted end profile (the skirting board will also be slanted along the short side).

    Joints are fittings used to join aluminium bars together (maximum bar length 78-3/4”).

    Terminal elements

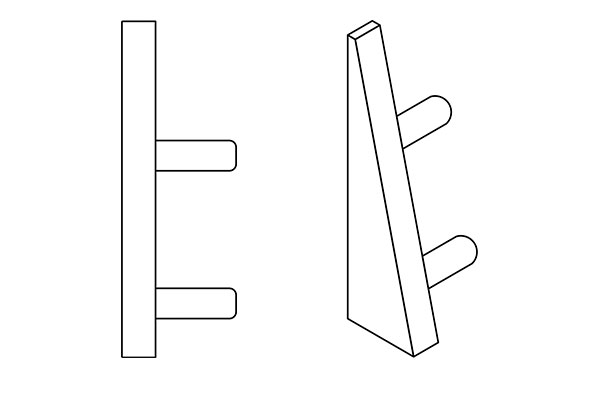

    ECLISSE Delta - straight terminal elements

    Straight terminal elements

    ECLISSE Delta - tapered terminal elements

    Tapered terminal elements
    - ECLISSE patent -

    Joints

    ECLISSE Delta - linear joints

    Linear joints

    ECLISSE Delta - joints for inside corners

    Joints for inside corners

    ECLISSE Delta - joints for inside corners

    Joints for inside corners
